Thrane Explorer 727 BGAN

Thrane Explorer 727 Vehicular BGAN Terminal
Product Price
Explorer 727 Vehicular BGAN
SKU: 403722A-00700
Subtotal£13,924.00
VAT£2,784.80
Price£16,708.80

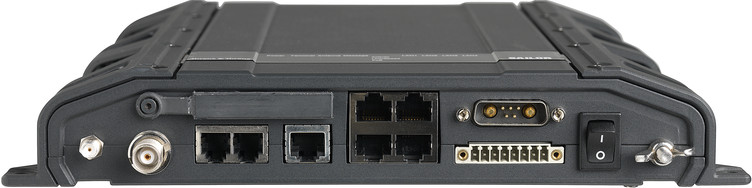

EXPLORER 727 is a high-speed, vehicular broadband terminal. It consists of three fully integrated units – a transceiver, an IP handset and a roof mountable antenna. Whether you’re engaged in defense, humanitarian operations, live radio or TV broadcasts or telemedicine, you need rapidly deployable communication equipment you can always rely on.

Place the antenna on the roof of your vehicle to turn it into a complete mobile communication hub, the Explorer 727 provides access to the internet and phone networks instantly. Constantly tracking satellite positions and making high-speed connectivity and communication possible – even at speeds in excess of 200 km/h the Explorer 727 facilitates both live streaming and store-and-forward utlising the highest streaming rates available on BGAN with BGAN X-Stream when the terminal is standing still.



Specifications





Features



Dimensions (H/W/D)

Transciever: 42.5x247x270mm
Antenna: 160/Ø476.5mm



Phonebook

Network Management

Weight

Transciever: 2.4 kg/Antenna: 6 kg



Message Indicator

DHCP

Standard IP

up to 492 kbps



Restricted Dialing

PDP Context (up to 11)

Streaming IP

up to 256 kbps
BGAN X-Stream™ on-the-pause



Traffic Logging

PPPoE

Standard/Premium voice

4 kbps/3.1 kHz audio, 64 kbps



Admin Control

SIP server

Operating temperature

-25ºC to + 55ºC/-13ºF to + 131ºF



Webserver



Ingress Protection

Transciever: IP-31/Antenna: IP-56



Router or direct mode





More Images

Coverage Maps

Asiasat 5 Indochina - 04 Series Beam, Astra 1H - 04 Series Beam, Astra 1KR - 04 Series Beam, Astra 1L - 04 Series Beam, Astra 1M Europe - 04 Series Beam, Astra 1M Widebeam - 04 Series Beam, Astra 2A 2B North - 04 Series Beam, Astra 2D North - 04 Series Beam, Astra 3A - 04 Series Beam, Astra 3B Pan European - 04 Series Beam, Astra 4A European - 04 Series Beam, Eurobird 1 Fixed - 04 Series Beam, Eutelsat W7 Eurasia - 04 Series Beam, Hispasat - 04 Series Beam, Hotbird 6 - 04 Series Beam, Hotbird 8 - 04 Series Beam, Hotbird 9 - 04 Series Beam, JCSat 3A - 04 Series Beam, JCSat 4A - 04 Series Beam, Koreasat 5 - 04 Series Beam, Measat 3 Malaysia - 04 Series Beam, Nilesat - 04 Series Beam, Optus C1 D3 - 04 Series Beams, Optus D1 - 04 Series Beams, Thaicom 5 Thailand - 04 Series Beam, Thor 6 K1 - 04 Series Beam, Thor 6 K2 - 04 Series Beam, Thor 5 T1 Nordic - 04 Series Beam, Vinasat 1 - 04 Series Beam
